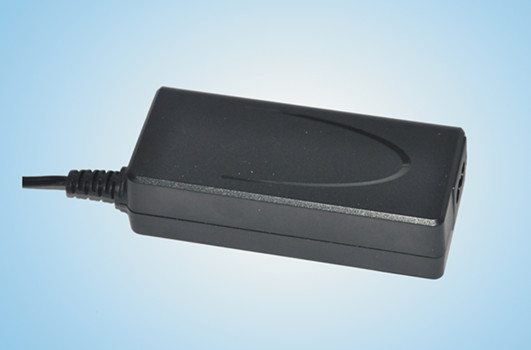

90W desktop charger
Specification:
DOE Efficiency Level VI
Input Voltage Range: 90V-264Vac
Input Frequency Range:47-63Hz
Input Current:1.3A max
Inrush Current: 60A at least 230Vac, Cold Star, 25℃
Efficiency Level:V
Ripple and Noise: 100-200mV
Altitude:2000m
Safety Parameter:
Operation Temp: 0-40℃
Abnormal Sound: 40db max, no sound room
Leakage Current: <0.25mA
Insulation Resistance: 50M ohm min
Dielectric Withstanding Strength: 3000Vac, 60Sec
Reliability:
MTBF:50000 Hours
Electroanalysis Capacitor: >12000 Hours
Thermal Derating: <80%
Drop: 1000mm to concrete
Key Features
Light, Extra, Human Mechanics Design compact
High efficiency green power, full complies with CEC
Level V, MEPS V EUP2010
Extra safe protection function design with respective safety approvals
Suitable for an extremely wide range of application
Such as: Mobile phone/Pos/Set-top-box/ADSL/Hard disk drive/AV product/
Household application etc.
